Stiffeners are secondary plates or sections which are attached to beam webs or flanges to stiffen them against out-of-plane deformations. Stiffeners will be present on almost all key bridge beams. The majority, on the other hand, simply have transverse web stiffeners—vertical stiffeners bonded to the web. Longitudinal web stiffeners are occasionally used in deep beams. Although they are uncommon elsewhere, flange stiffeners may be employed on large-span box girder bridges. A comprehensive selection of Stiffener plates of the highest caliber is produced by Aurum Alloys. Keeping in mind the various needs of the customers, the given product is made using the highest quality raw materials and contemporary processes.
There are primarily two categories of stiffeners:
• In the span direction-aligned longitudinal web stiffeners
• Transverse stiffeners, which are positioned transverse to the direction of the beam's span.
Typically, bearing positions are equipped with transverse web stiffeners, often referred to as bearing stiffeners. Having bearing stiffeners available at jacking points is a recommended practice for future maintenance (for when girders have to be raised to free bearings for replacement). Intermediate transverse web stiffeners are several types of transverse stiffeners.
Typically, box girders lack stiffeners at the locations of the supports in favor of diaphragms. Typically, the interior of the box has solid plates like these.

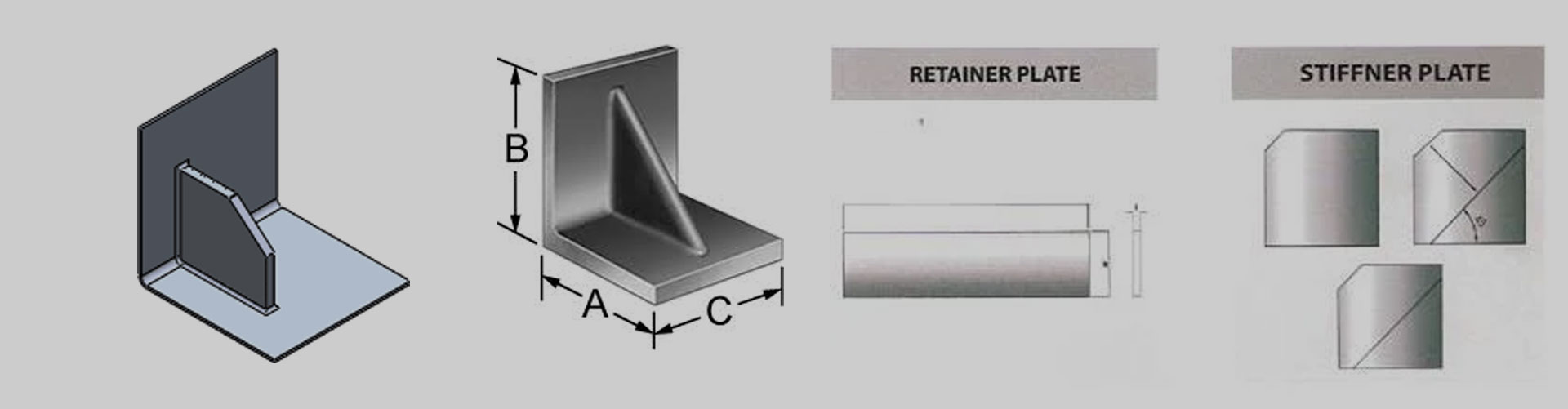

Stainless Steel Stiffren Plates
SS Longitudinal Web Stiffener Plates
SS Transverse Stiffener Plates
What are stiffeners used for?
Stiffeners serve one or both of the following purposes:
• Controlling local buckling
• Joining bracing or transverse beams
Controlling local buckling
Local buckling happens when a cross-section is thin enough for buckling to happen inside the cross-section, either from compression or shear. The webs of bridge beams are typically susceptible to local buckling, whereas flanges are typically much thicker and naturally more resistant to buckling.
Local buckling can be caused by shear, transverse compression load, such as a web subjected to a bearing reaction, or longitudinal compression load, such as from bending.
In all circumstances, a relatively tiny stiffener added to a thin plate can significantly increase the resistance to local buckling.
Transverse or bracing beams that connect
Fixing the bracing to transverse stiffeners is the most straightforward method of joining steel beams. Therefore, bracing locations and stiffener positions are virtually always congruent.
The transverse beam webs can be directly attached to the main beam stiffeners in a ladder deck, ensuring that stiffener spacing is the same as the transverse beam spacing. As long as the main beam stiffeners are attached to the bracing members in a multi-girder bridge with cross bracing, the stiffener spacing and bracing spacing will be the same.
Stainless Steel Transverse Stiffener Plates, SS Stiffener Plates on Pipe Column, Stainless Steel Longitudinal Web Stiffener Plates, Stainless Steel Vertical Stiffener Plate, 304 Stainless Steel Stiffener Plates, 316 Stainless Steel Stiffener Plates, Stainless Steel Horizontal Stiffener Plate, SS Stiffened Base Plate, Rust Proof SS Stiffener Plates, SS 304 Stiffener Plate, SS 316 Stiffener Plate, Stainless Steel Stiffener Plates Supplier In Mumbai, India.
For Our Customers:
- Customer service provided at Aurum Alloys & Engineering LLP is of the highest standard.
- Material used in Stainless Steel Stiffener Plates production is of high quality.
- Equipment is updated and regularly maintained.
- You will get exactly what you need and when you need it.
- Cost effective and high quality Stainless Steel Stiffener Plates is supplied.
